PRODUCTION ZX-3D-208 model Automatic wire-rotating 3d wire forming machine with customized downward height

Price in reward points: 34001
  • Brand: unbranded
  • Product Code: CN230808411799
  • Availability: 500
- +

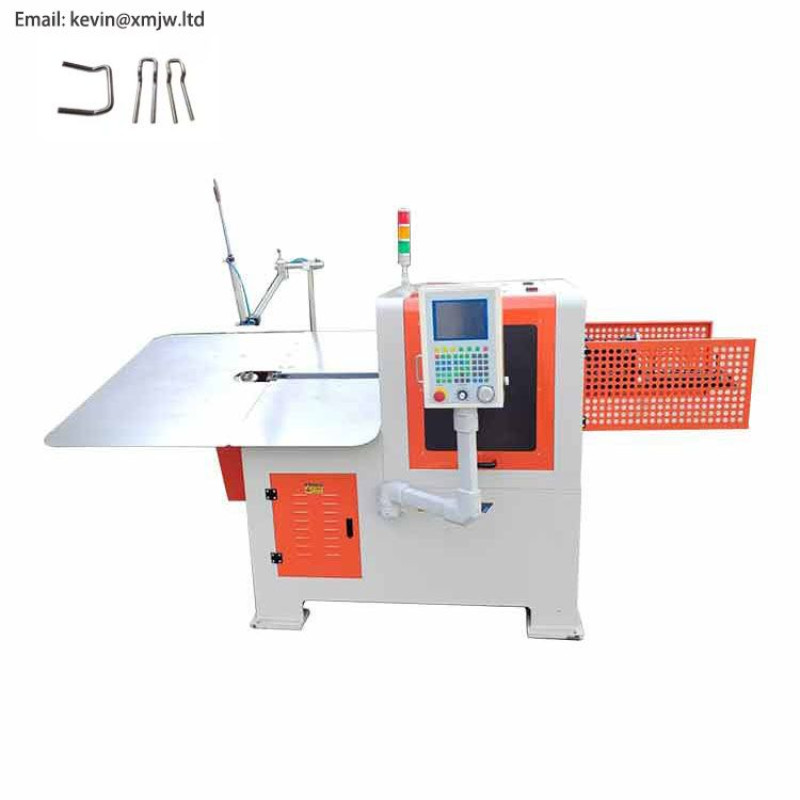

ZX-3D-208 model Automatic wire-rotating 3d wire forming machine with customized downward height


Product Description


3D cnc wire forming machine Advantages & Feature:
This kind of wire-rotating 3d wire forming machine can produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts famous brand Servo motorand screen display  or customized  controller.
3 groups feeding roller 2 groups straightening wheels, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotatings more fast and light, turning angle is more precise and stable.

wire-rotating 3d wire forming machine can be used for

1) Auto Industry area 2) Metal wire industry

3) Furniture and kitchen4) Hardware industry

5) Mattress, sofa spring srea6) Architecture area

7) Hardware Artcrafe and so on.

wire-rotating 3d wire forming machine main technical parameters and configurations:


ZX-3D-208 wire bending machine

Number of shaft



Diameter of the steel wire(mm)

Hard material2.0 ~Φ 6.0

Soft material :Φ2.0 Φ8.0

Number of wire feeder

2 suits

Wire rotation angle

360 degrees unlimited number of turns

Applicable wire

Round wire, flat wire, square wire (applicable to any wire material)

Data storage

10000 data, 300 data as a group

Maximum wire feed speed


Feeding servo motor power


Bending Cutting motor power


Swing wire motor


Platform lifting motor power


Servo motor total power


Action direction

Both the inner and outer molds can be raised and lowered, and the positive and negative bending

Feeding accuracy


Internal mold angle rotation


Input power

380V50HZ/60HZ or customized

Machine weight


Machine size




wire-rotating 3d wire forming machine detailed show :



Applicable IndustriesBuilding Material Shops;Manufacturing Plant;Retail;Construction works;Energy & Mining;Food & Beverage Shops;Other;Advertising Company
Applicable wireround wire;flat wire and square wire
Bend Angle360 degree
colorYellow or customized
Control systemCNC Control
Core ComponentsEngine;Motor;CNC;bending mold and cutter;wire-feeding wheels and straightening wheels
Extra ServicesEnd Forming
Key Selling PointsCompetitive Price
Machine Typecoil wire bending machine
Machinery Test ReportProvided
Marketing TypeOrdinary Product
Material / Metal ProcessedCarbon steel
Number of Axis4 Axis
PackingWooden Case +iron Pallet
Place of OriginHebei;China
Product namearm-rotating 3d wire forming machine
Raw MaterialSteel Bar
Showroom LocationNone
TypeMulti Functional
Video outgoing-inspectionProvided
Warranty1 Year
Warranty of core components1 Year
Weight (KG)1650
Wire diameter2-8mm
Yearlatest production
